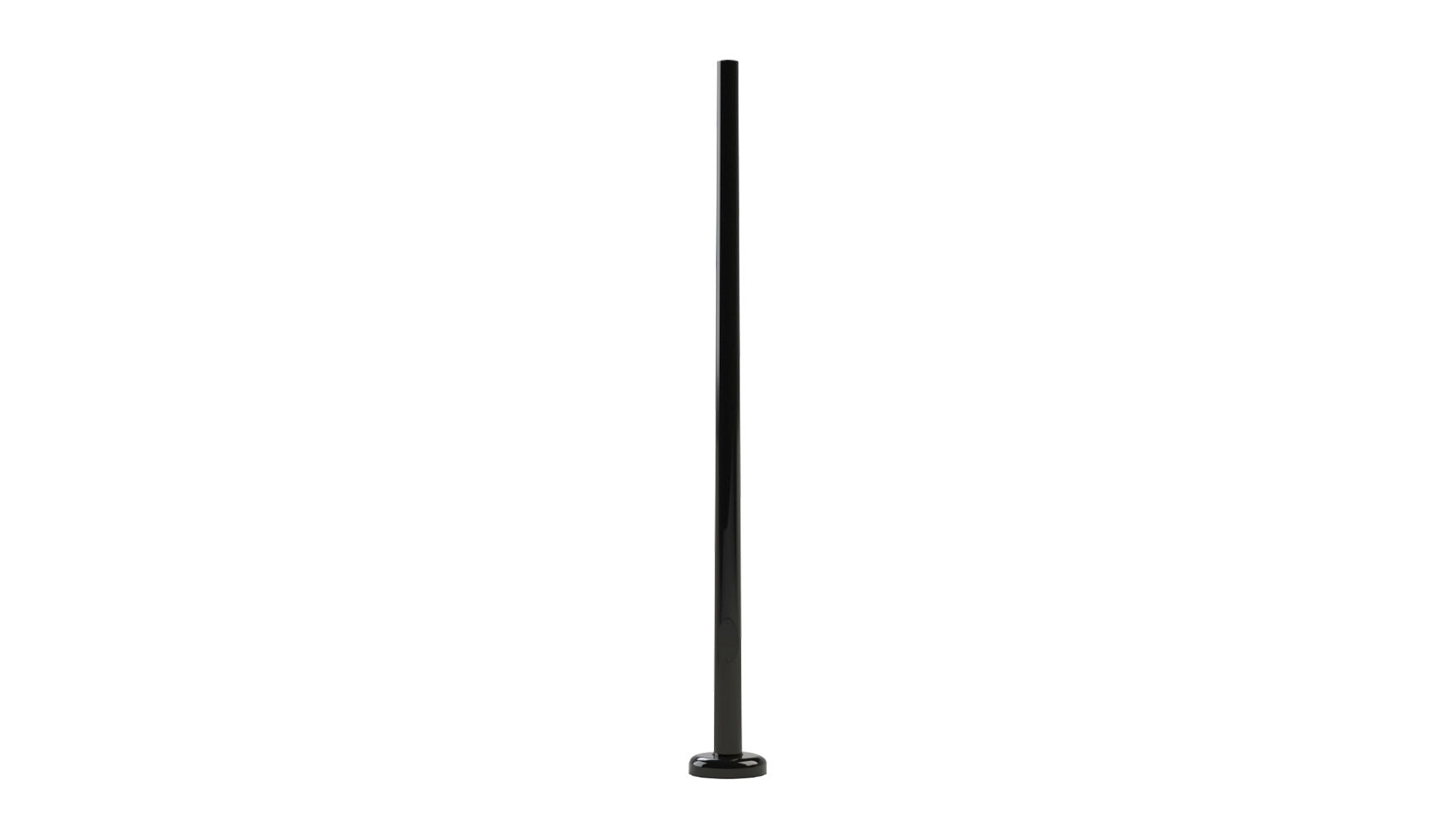

Specifications and Features:
• 20’ to 50’ mounting heights
• For single or multiple luminaire mounting
• Luminaires may be mounted on tenons, brackets or shaft may be drilled to manufacturer’s
mounting specifications

Structural Base
A356 alloy sand cast aluminum, four bolt base. A large access base cover is also available as an
option. A grounding lug is also provided. Aluminum nut covers are included with anchor bolts.

Handholes
All standards include a peripherally reinforced flush covered handhole centered 18” above the
bottom of the standard. The opening in the 5” and 6” diameter standard measures 3” x 5”. The
opening in the 7”, 8” and 10” diameter standard measures 4” x 6”. An optional 4” x 8” opening is
available for 8” and 10” diameter standards.

Anchor Bolts
Standard with each pole: includes four 3/4-10x25” steel hot dip galvanized anchor bolts; each with
two nuts, two flat washers and one lock washer.

Tenons
T300=Standard for post top (27/8” OD x 3” tall)
T355=Standard for shepherd’s crook arms (27/8” OD x 5.5” tall)
CAP=Removable cap, no tenon
